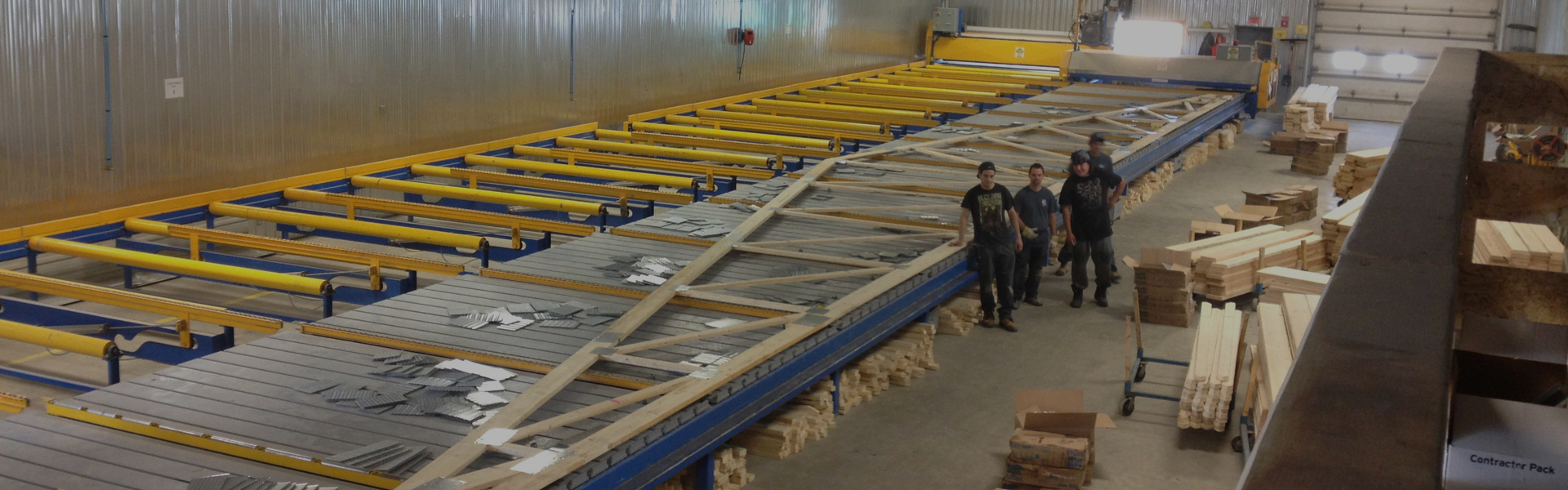

Our tables are custom-designed according to the desired product dimensions.

TWO TYPES OF EJECTIONS ARE AVAILABLE:

• Work table with side output
• Work table with in-line output

WORK TABLE WITH SIDE OUTPUT

• Raising with a fluid power system integrated into the table for transferring roof trusses to the inner conveyor
• Integrated work space for easy access to the center of the table
• Parking to free up the work area at the end of the table

INNER CONVEYOR:

On this conveyor are installed the fluid power systems that rise and join the table from the side. The worker has to only push the roof truss to easily place it on the conveyor.

WORK TABLE WITH IN-LINE OUTPUT

• Lift-up parking to raise the gantry roller, allowing the roof truss to pass under it and go outside
• Integrated work space for easy access to the center of the table
• A power fluid system to move roof trusses along the entire length of the table

DIMENSIONS

• Length: 40’ to 120’
• Width: 12’ and 14’
• Working height: 30”

T-slots are adjustable and used to lock the wood. They are adjusted with Virtek lasers, which project a laser representation of the roof truss to be manufactured. Once tangential to the laser line, the t-slot is clamped in place, and the production table is ready for the new series to be manufactured.

The pneumatic parking lifts the gantry roller to about 4″, allowing the roof truss to pass underneath. This parking is used only when the ejection from the truss is linear.

SPECIFICATIONS

• Model for fixed rails to the table (continuous or sectional)                    Roll with a 24″ × 1″ diameter before machining
• 10 HP, 575 V gear motor with soft-start and emergency stop brake, the latter detected by laser (2 safety sensors according to CSA electrical standards)
• Diameter of the axes 4”, machined to 3 7/16″ for ball bearings Maximum execution speed of 200′ per minute
• Safety noise signal
• Programmable automaton
• Instant emergency stop button
• A unique and patented belt movement system for the table with opening between each rollers
• Tension of hydraulic drive belts
• Pre-pressing of the plates to solidify the roof truss Proximity detector for worker safety (laser)

POWER

• Electric: 30 A 600 V/3 phases

DIMENSIONS

• Height of the table top: 32”
• Pressing width: 14’ maximum

OVERALL DIMENSIONS

• Length: 50’ to 150’
• (table and its gantry roller) Width: 8’ to 14’
• Height: 72” once on the table

Note: No floor rails for an ideal working space

These conveyors are designed to move roof trusses from the work table to the finishing roller. A pop-up elevator system is integrated into the conveyors to facilitate the transfer of these trusses. The indoor conveyors consist of several rollers with a diameter of 5 9/16″, most of which are motorized, each one separate from the other.

DIMENSIONS

• The length varies according to customers’ needs.
• Width: between 12’ and 16’

The finishing roller allows a second pressing of the plate into the wood. It ensures that the pressing of the studded plates is of optimal quality. It is equipped with a simple adjustment mechanism. It guarantees that your product is of superior quality.

The finishing roller is made of two rolls with a 24″ × 1″ diameter before machining. It is protected by a physically detected electrical security system.

• Finishing roller dimensions as desired, the standards being 12’ and 14’        10 HP, 575 V gear motor with soft-start
• Electric brakes with emergency stop activated by safety sensors
• (according to CSA safety standards)
• The axes with a diameter of 3 7/16″ on ball bearings
• Operating speed of 120′ to 160′ per minute

All our conveyors are custom-made, and most of them are motorized. We manufacture several types of roller conveyors. We can also integrate a pop-up elevator system to the conveyors for a side exit.

This limit switch is used to detect the roof truss so that it is centered on the stacker and all roof trusses are properly aligned when packaged.

The length of the sliding bar is as desired by the customer.

HYDRAULIC MODEL

• Lowering the roof truss package via hydraulic system, from vertical to horizontal
• Manual or automatic stacking operation
• Stacker synchronized with your machines
• Lowering and raising the support arms mechanically or manually

ELECTRIC MODEL

• Lowering vertically the roof truss package via hydraulic system
• Manual or automatic stacking operation
• Stacker synchronized with your machines
• Lowering and raising the support arms mechanically or manually

SUPPLY

• Electric: 230 or 550 V

DIMENSIONS

• Several options are available and designed according to customers’ needs.

This mini c-clamp is attached to a portable hydraulic system.

USES

• Repair or modification on a readymade roof truss
• Production of small rafters on an independent table with precut parts

ADVANTAGES

• Lightweight and easy to transport
• High-capacity pressing
• Simplified modifications without having to move the roof truss

The plate remover is a tool used to remove defective truss plates in roof trusses. The steel clamping hooks (grade QT 400) offer better resistance.

STANDARD DIMENSIONS

• Length: 32 inches including the handle

The multidirectional factory handling cart allows the easy transport of precut wood to feed the workstations.
